Raing 额定: 3A/6A 125/250V

规格尺寸：10*15mm

安规：ENEC、CQC、CB等

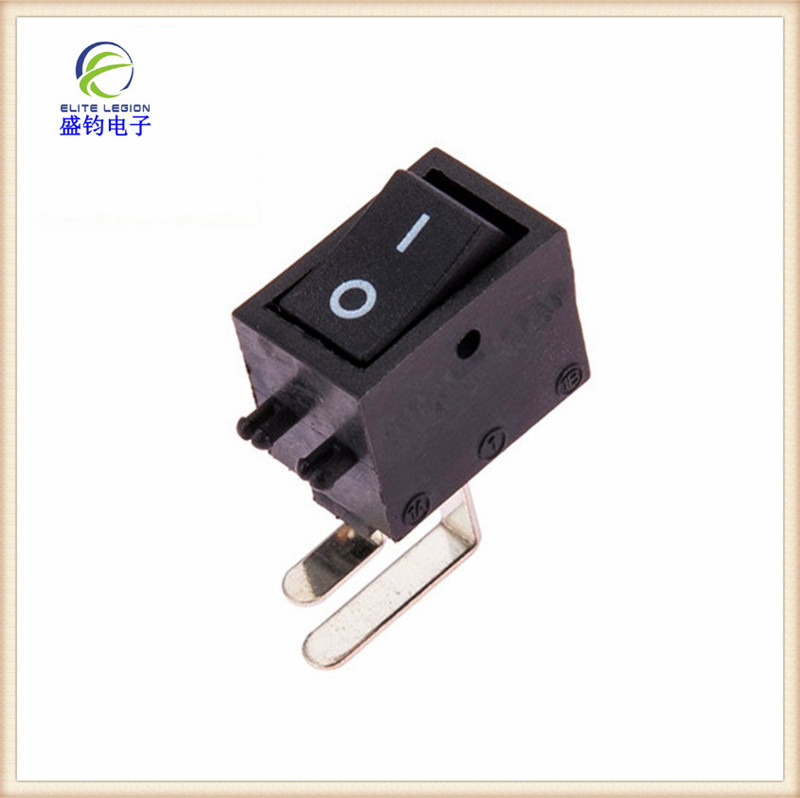

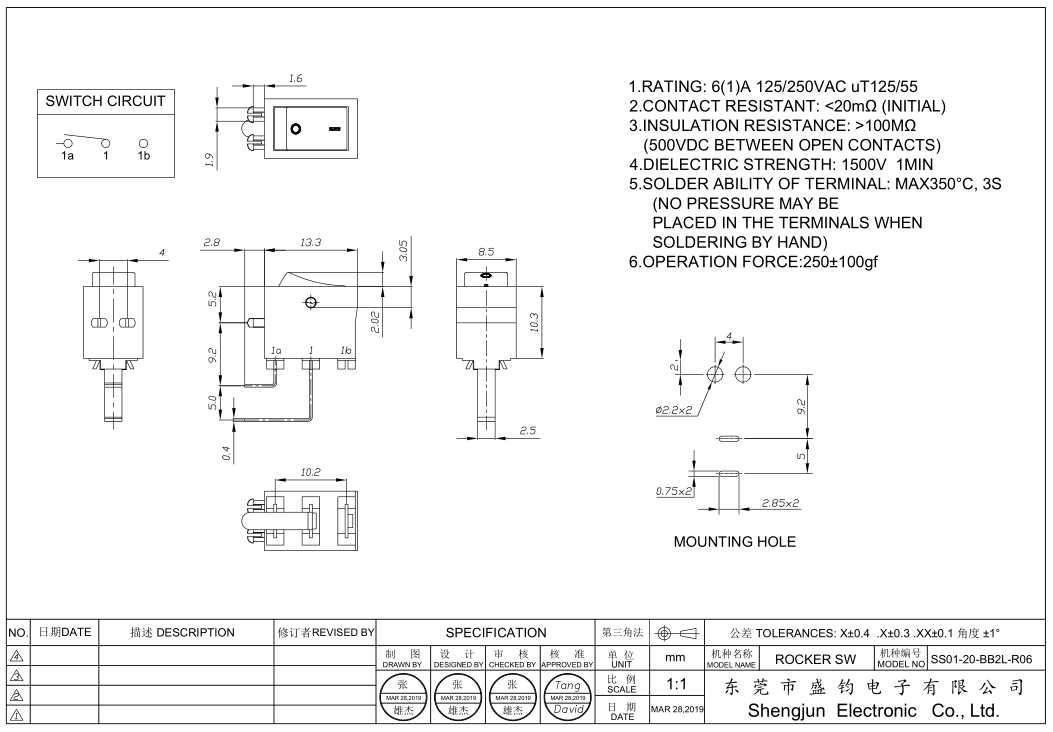

1.ROCKER SWITCH MODEL SS01-20

2.PCB CONNECTOR TYPE: SINGLE POLE SINGLE THROW

3.RATING: 3A/6A 125/250VAC

4.CONTACT RESISTANT:<20MΩ (INITIAL)

5.DIELECTRIC STRENGTH: 1500V 1MIN

6.INSULATION RESISTANCE: >100MΩ

7.MECHANICAL LIFE: >3000 CYCLES (500VDC BETWEEN OPEN CONTACTS)

8.ELECTRICAL LIFE: >10000 CYCLES

9.TEMPERATURE RISE AT THE TERMINAL: MAX.30'C

10. ALL MATERIALS ARE ROHS COMPLIANT

11.ACTUATOR & HOUSING COLOR: BLACK

12.ACTUATOR PRINTING

13.SOLDER ABILITY OF TERMINAL: MAX350'C,3S (NO PRESSURE MAY BE PLACED IN THE TERMINALS WHEN SOLDERING BY HAND)

MATERIAL (材质):

(转子) ROLLER：BRASS,NICKEL PLATED

(基座) TERMINAL BASE: NYLON 66(94V-0)

(柄) ACTUATOR：PC(94V-0)

(弹簧) SPRING: STAINLESS

(接触片) CONTACT：COPPER,SILVERPLATED

(端子) TERMINAL: BRASS,TIN PLATED

(接点) CONTACT：Ag CLAD COPPER Alloy

主要用途: 仪器设备、办公设备、小家电、机顶盒、路由器、数字机盒、电气设备、热敏打印机等做电源控制
